Waveshare 7inch DVI Display Module for Raspberry Pi Pico IPS Panel 1024×600 Pixel DVI Interface Communication

- Comes with online development resources and manual (examples for Raspberry Pi Pico C/C++) - Adopts IPS panel, 1024×600 resolution*, with 170° viewing angle. Adopts DVI interface for higher communication speed - Based on the Raspberry Pi Pico with onboard 40PIN header - Built in OSD menu for brightness/contrast adjustment. Available in 7inch and 10.1inch display sizes - Suitable for advertisement picture display and other application scenarios

Product description

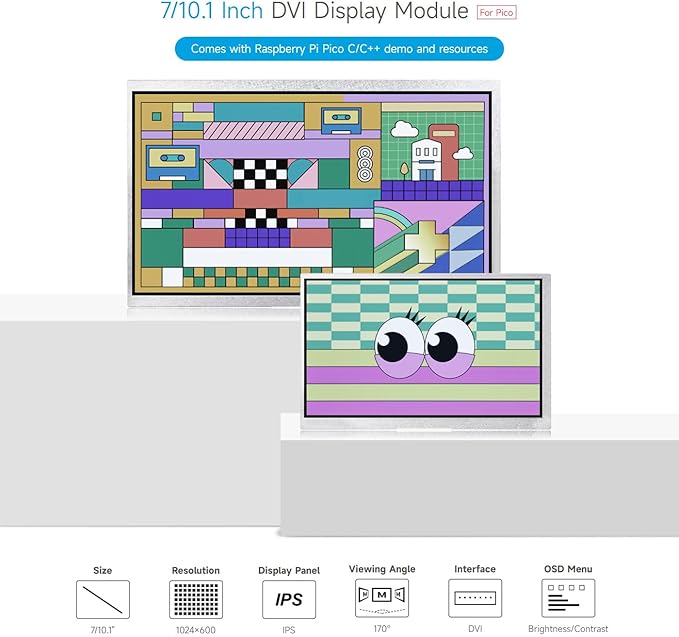

7/10.1 Inch DVI Display Module For Raspberry Pi Pico, IPS Panel, 1024×600 Pixel, DVI Interface Communication

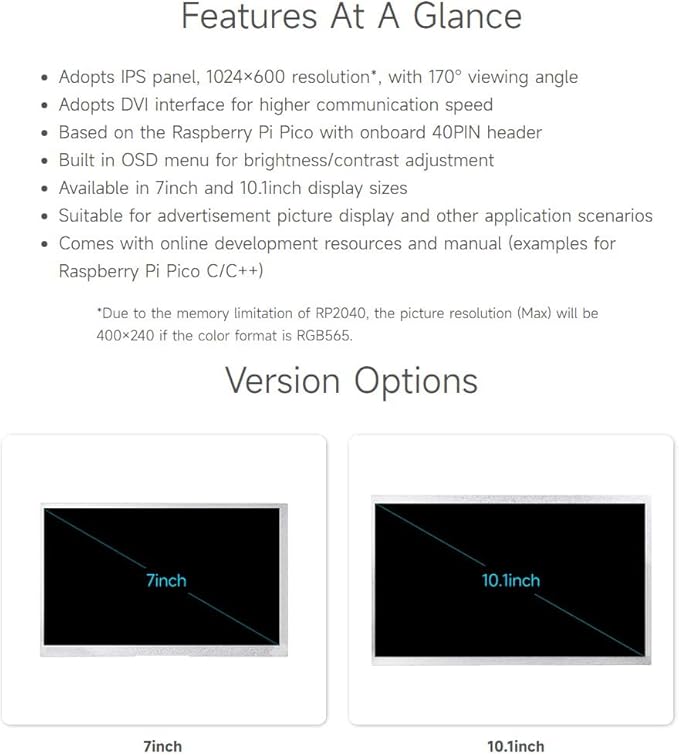

Features At A Glance

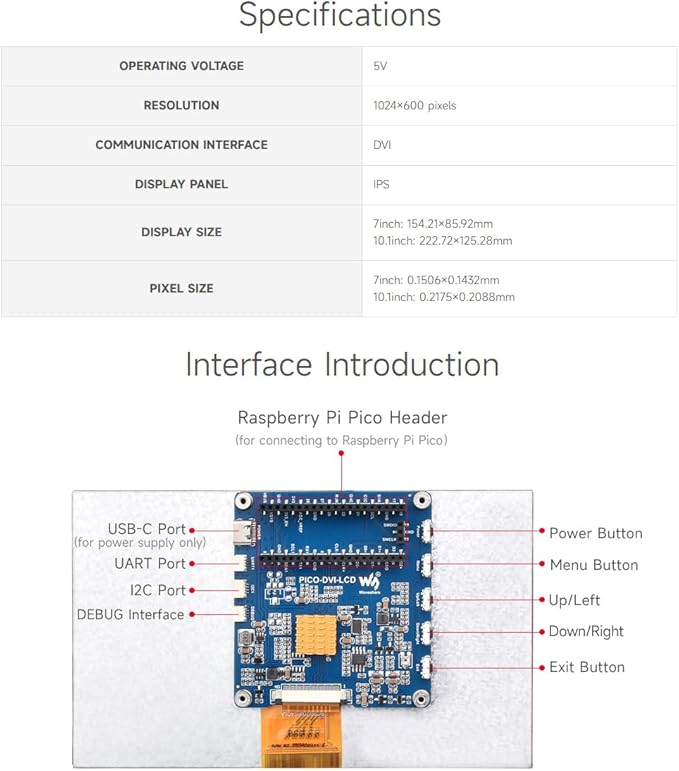

Specifications

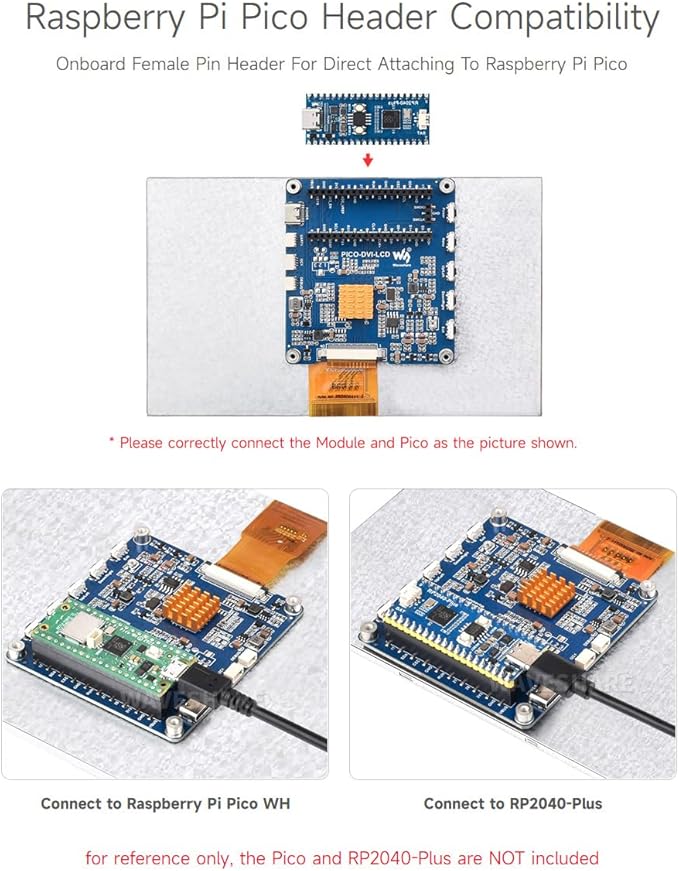

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

*Due to the memory limitation of RP2040, the picture resolution (Max) will be 400×240 if the color format is RGB565.

Please correctly connect the Module and Pico as the picture shown

For reference only, the Pico and RP2040-Plus are NOT included

For reference only, the Pico and RP2040-Plus are NOT included
