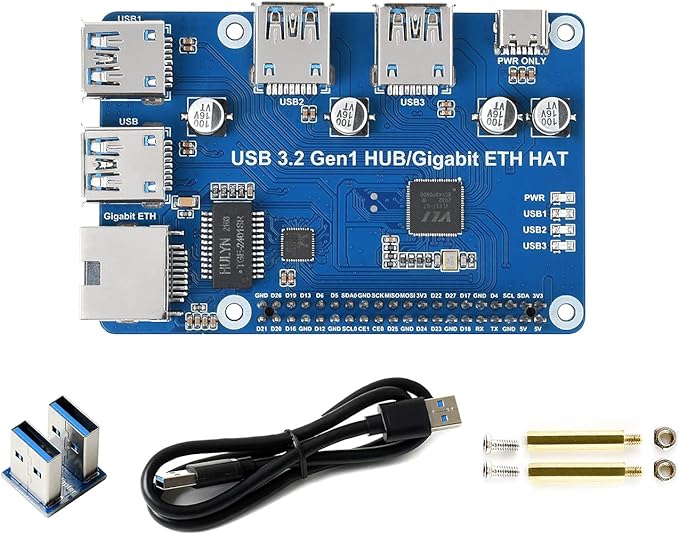

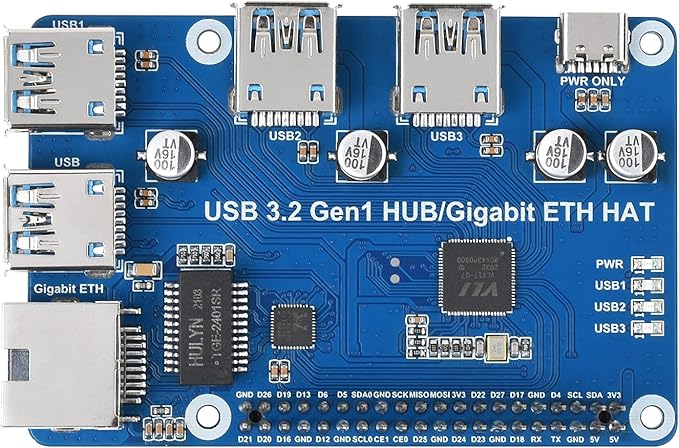

Waveshare USB 3.2 Gen1 and Gigabit Ethernet HUB HAT Compatible with Raspberry Pi Zero/Zero W/4B/3B/3B+ 3X USB 3.2 Gen1 1x Gigabit Ethernet No Driver Required

- 3x USB 3.2 Gen1 ports, compatible with USB 3.0 / 2.0 /1.1. 1x Gigabit Ethernet port, 1000M/100M/10M compatible - Onboard external USB-C 5V DC power port, ensures more stable power supply - 1x power indicator and 3x USB port indicators, easy to check the operating status - Driver-free, plug and play, compatible with OS including Windows, mac OS, Linux and Android - Purpose-made for Raspberry Pi 4, compatible with other Raspberry Pi version as well. Comes with development resources and manual

Product description

Features At A Glance

Designed For Raspberry Pi Series

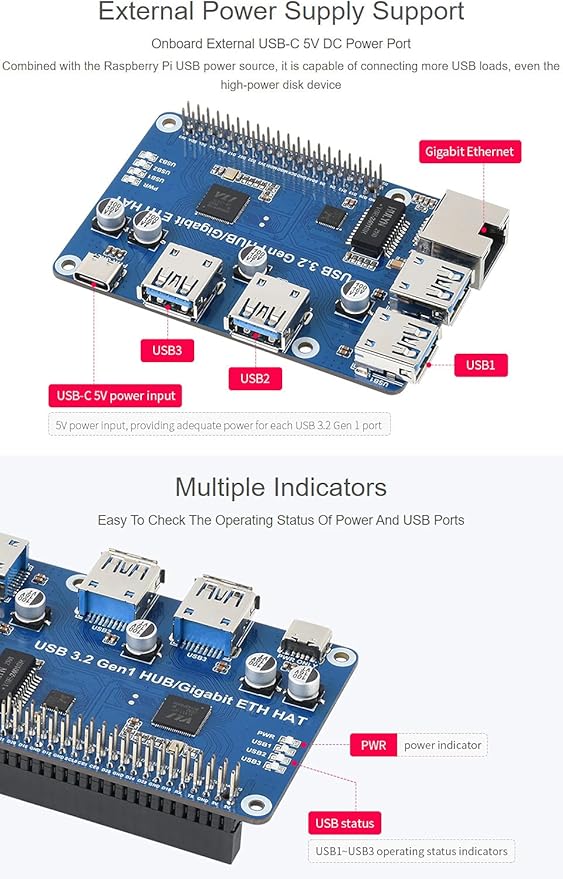

External Power Supply Support-Onboard External USB-C 5V DC Power Port

Multiple Indicators

Easy To Check The Operating Status Of Power And USB Ports

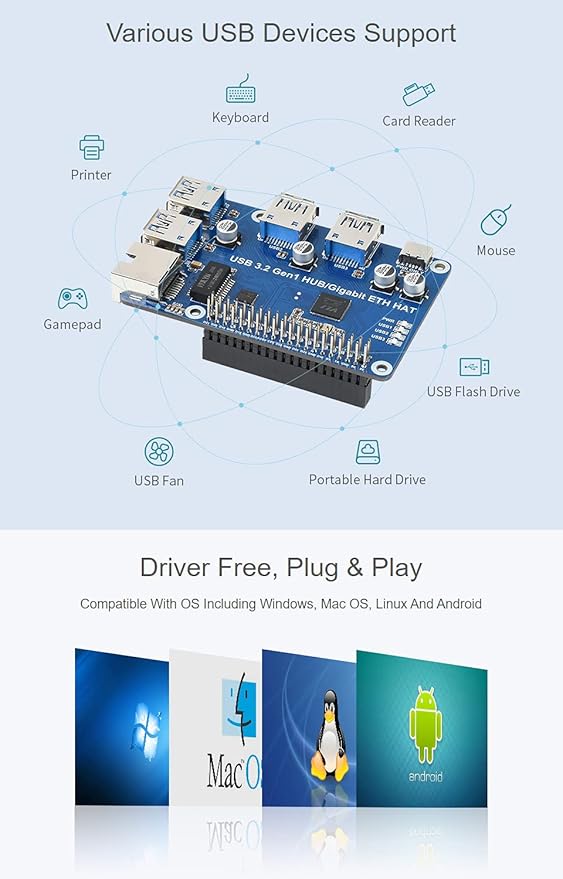

Various USB Devices Support

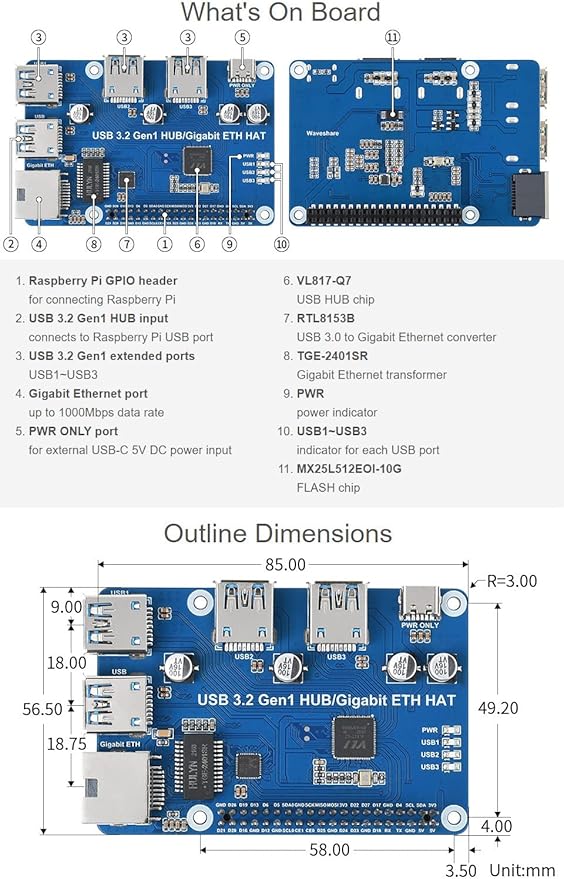

Outline Dimensions

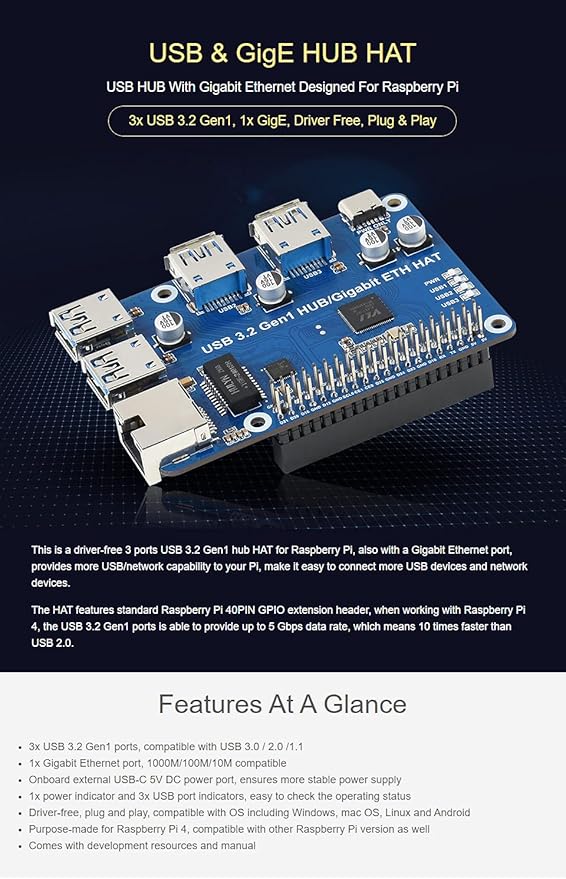

This is a driver-free 3 ports USB 3.2 Gen1 hub HAT for Raspberry Pi, also with a Gigabit Ethernet port, provides more USB/network capability to your Pi, make it easy to connect more USB devices and network devices.

The HAT features standard Raspberry Pi 40PIN GPIO extension header, when working with Raspberry Pi 4, the USB 3.2 Gen1 ports is able to provide up to 5 Gbps data rate, which means 10 times faster than USB 2.0.

Only Raspberry Pi 4B and Pi 400 support USB 3.2 Gen 1 for the moment, therefore, when working with other previous Raspberry Pi versions, there will be a data rate degradation.

Combined with the Raspberry Pi USB power source, it is capable of connecting more USB loads, even the high-power disk device

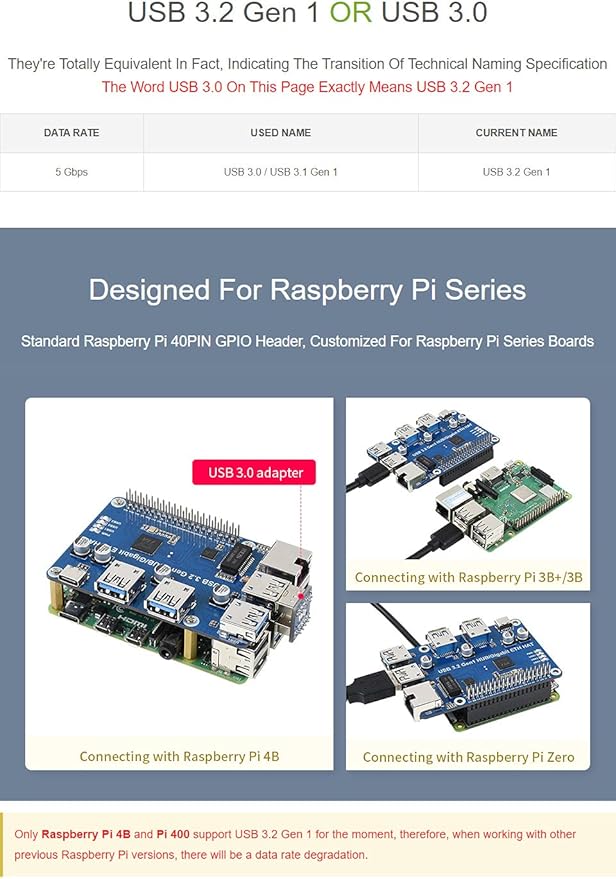

USB 3.2 Gen 1 OR USB 3.0

They're Totally Equivalent In Fact, Indicating The Transition Of Technical Naming Specification The Word USB 3.0 On This Page Exactly Means USB 3.2 Gen 1
